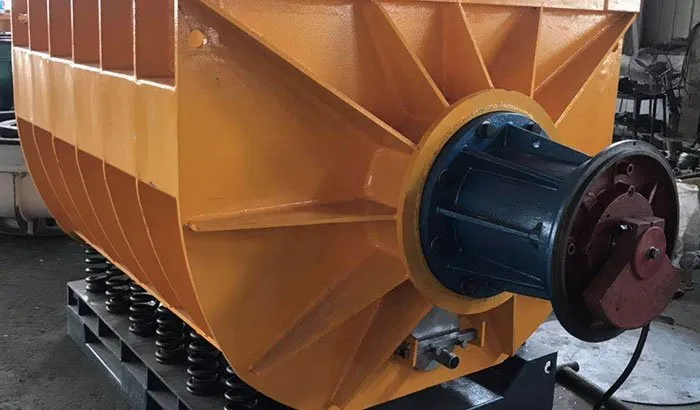

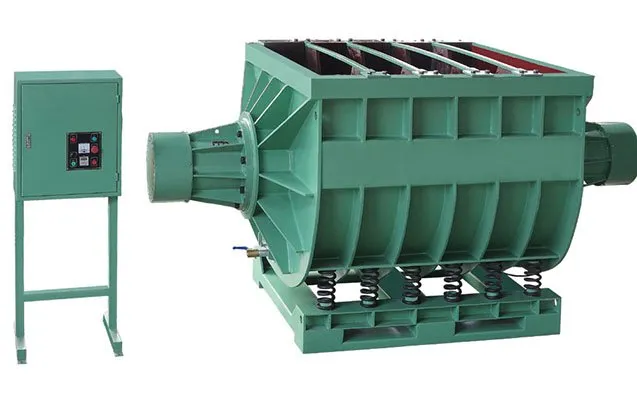

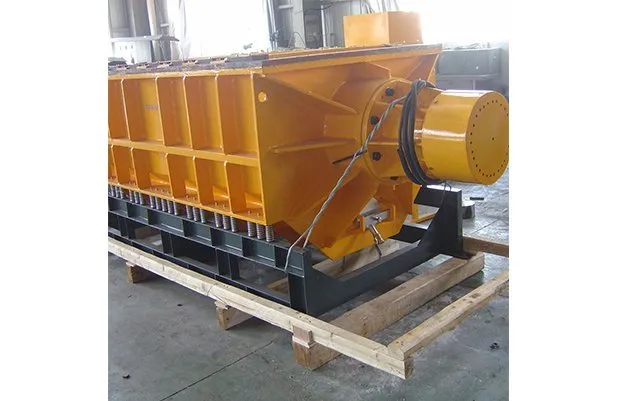

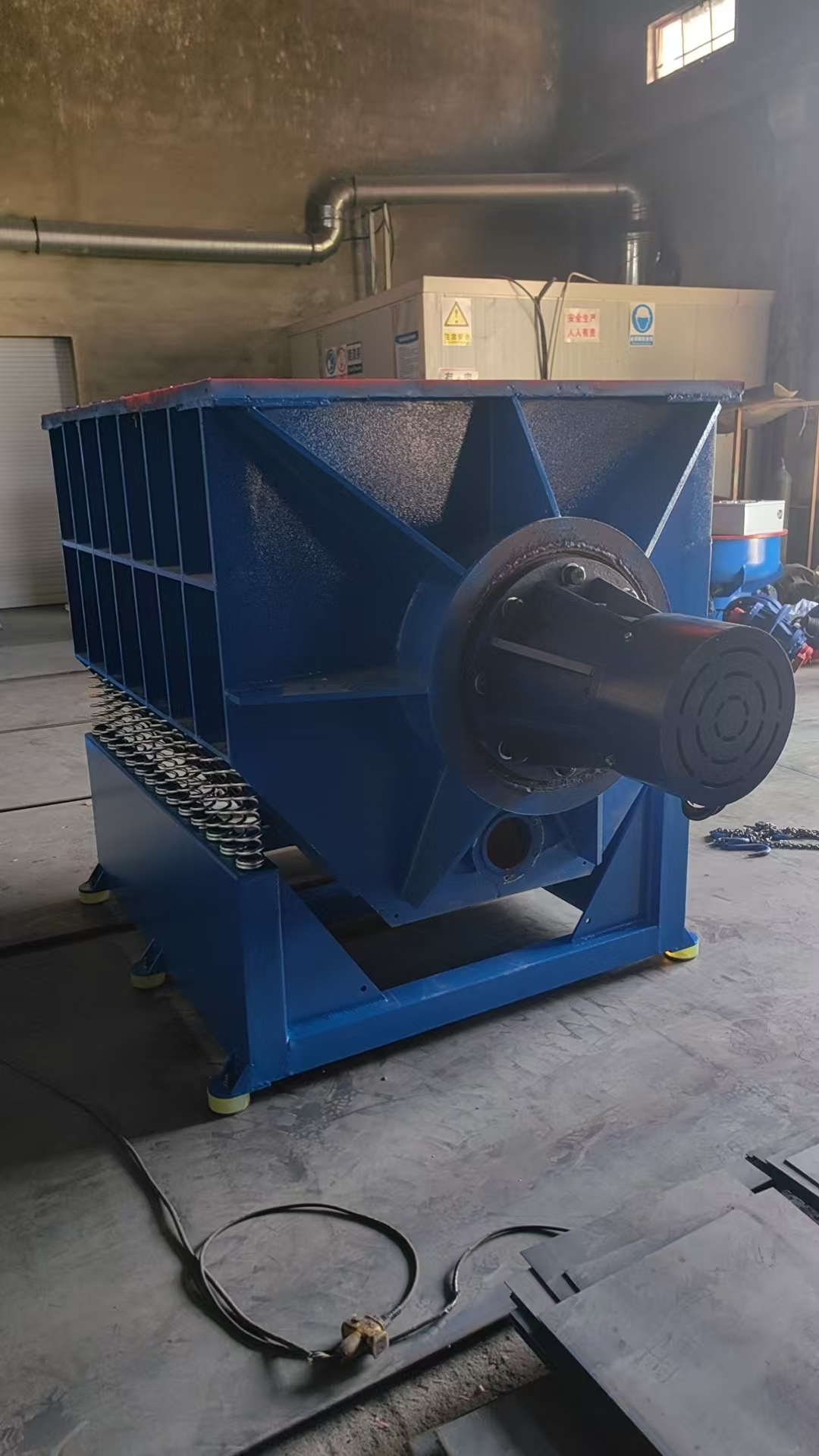

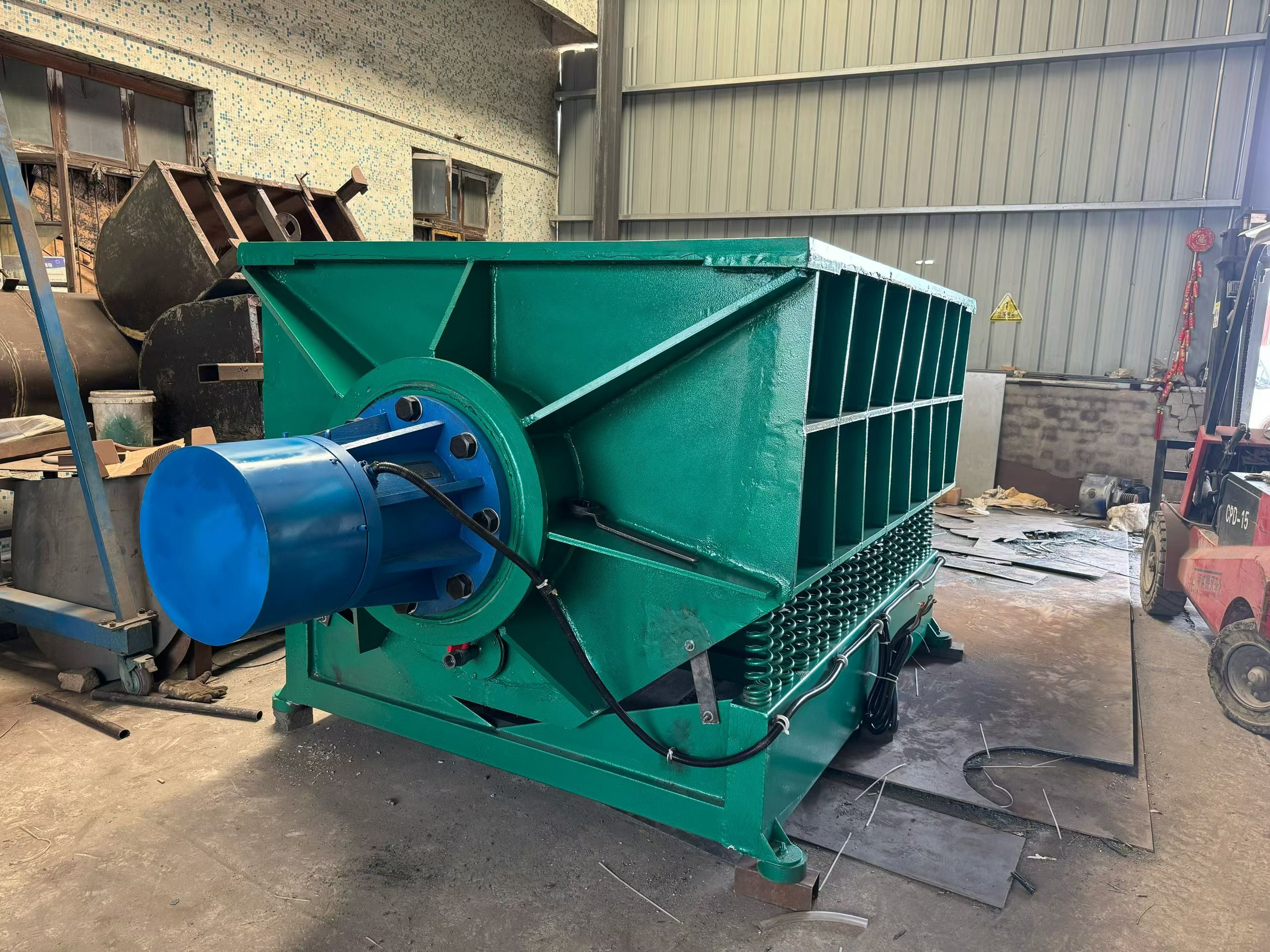

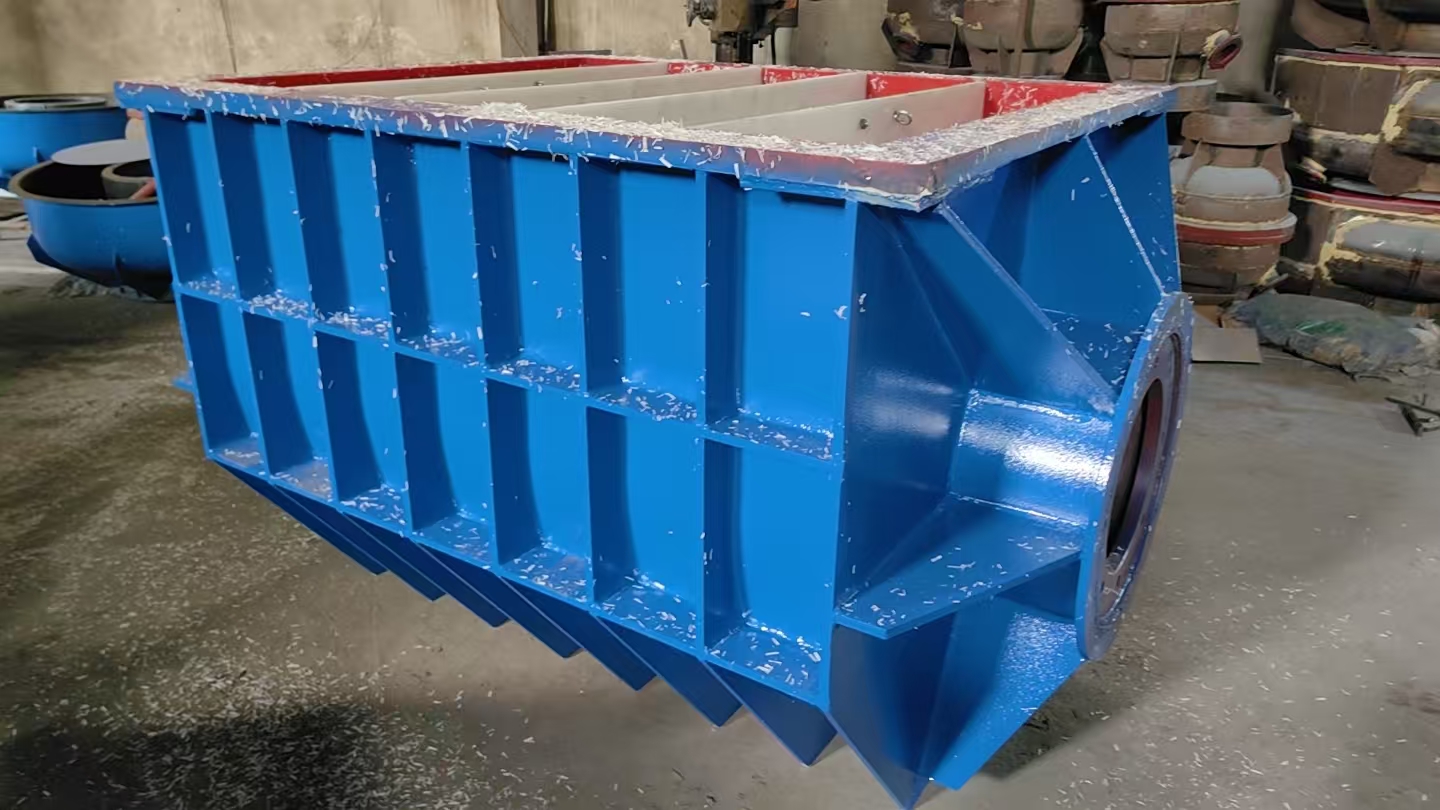

The VBS(B) vibratory tub finisher machine is known for its straight wall design, and it comes with the chamber divider option.
Detailed specifications for our TVB(B) series Vibratory Tubs.
| Model | TVB(B)500 | TVB(B)900 | TVB(B)1200 | TVB(B)1800 | TVB(B)2800 |
| Total volume(L) | 500 | 900 | 1200 | 1800 | 2800 |
| Max overall dimension(mm) | 2670x1000x985 | 2700x1050x1100 | 3000x1050x1100 | 3500x1336x1256 | 3300x1830x1740 |
| Chamber length A (mm) | 1310 | 1200 | 2000 | 2000 | 1580 |
| Chamber height B (mm) | 700 | 850 | 850 | 940 | 1270 |
| Chamber diameter C (mm) | 690 | 900 | 750 | 1120 | 1500 |
| PU Lining thickness (mm) | 25 | 25 | 25 | 25 | 25 |
| Power (kw) | 2.2×2 | 4.0×2 | 4.0×2 | 5.5×2 | 9.0×2 |
| Weight (kg) | 700 | 900 | 2100 | 2800 | 4000 |
Note: All specifications are subject to change without notice. For custom requirements and detailed technical drawings, please contact our engineering team.
Our high-efficiency tub vibratory tumbler machine feature durable design and customizable vibratory finishing solutions to meet diverse industrial requirements.
Ensures stable and efficient operation with reliable power delivery for continuous production cycles.
Long lifespan and noise reduction with superior wear resistance for extended operational efficiency.
Suitable for various materials with customizable vibratory finishing solutions for optimal results.

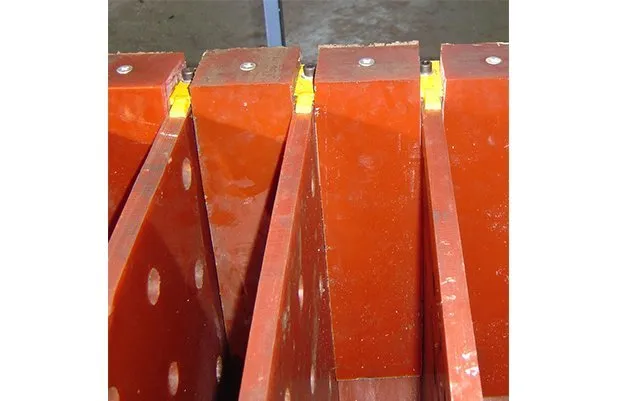

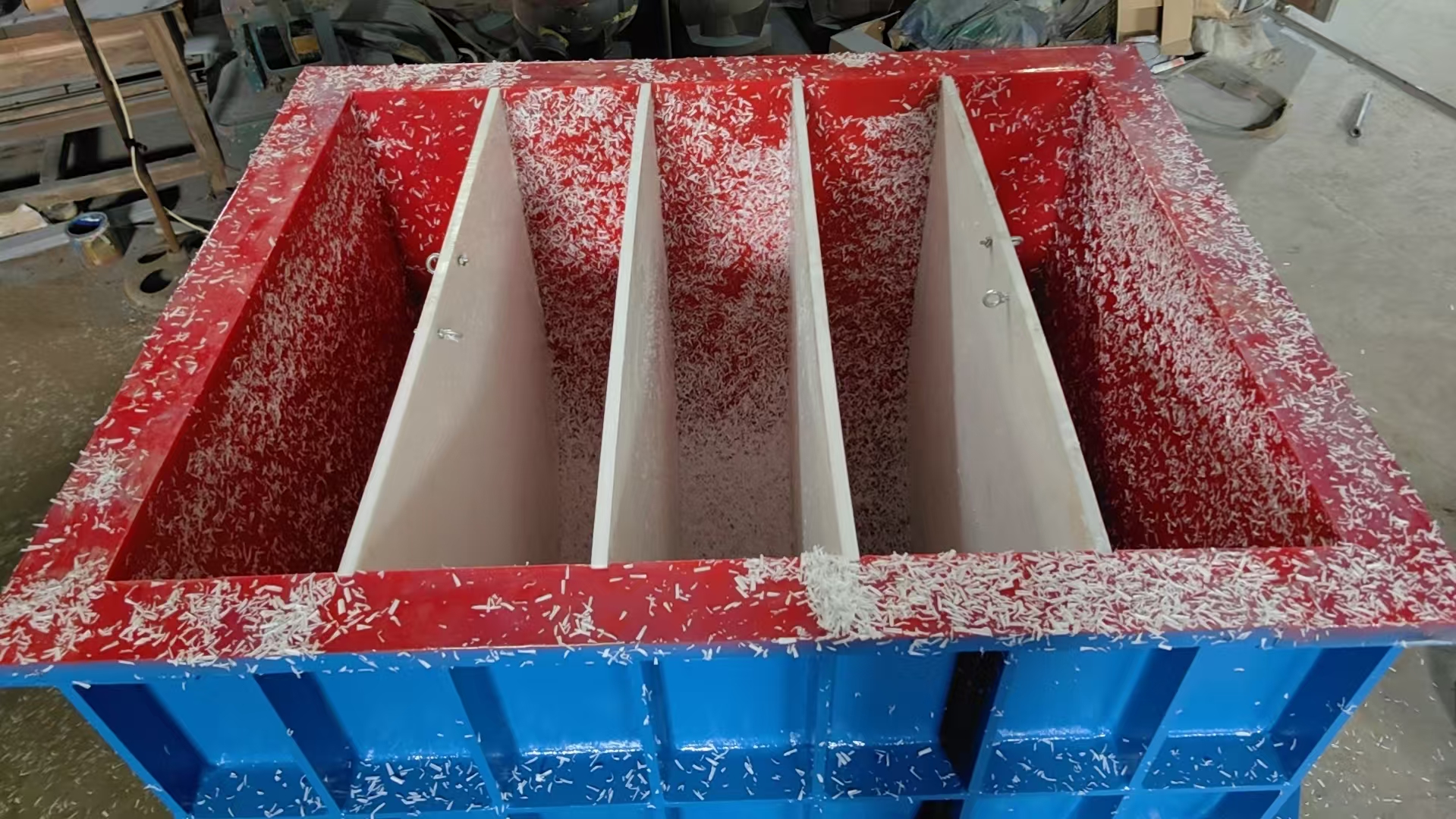

TVB(B) series trough vibrators are the well-established solution for finishing heavy and large parts. Besides, the straight wall tub vibrators equipped with fixed or removable polyurethane tub dividers prevent parts contacting.
One of the major application of this machine is for marbles tiles aging and antique finishing.
Our mass finishing machine and tumbling media serve diverse industries with specialized finishing solutions for various materials and part types.
Engine components, transmission parts, brake systems
Turbine blades, landing gear, structural components
Fasteners, connectors, precision tools
Post-processing, surface refinement, finishing
Our company is a professional service provider specializing in surface treatment of workpieces and grinding methods to remove burrs from the surface of the workpieces and achieve surface polishing. We are dedicated to manufacturing polishing machinery, polishing blocks, and polishing liquid products. We welcome inquiries from all sectors of society for cooperation!
