The VBS(B) vibratory deburring machine from Inovatec is one of the most popular deburring machines. The simple design and easy to use features make it user friendly. You can deburr a large number of parts in the machine with the help of the straight wall design.
Detailed specifications for our VBS(B) series vibratory deburring machines.

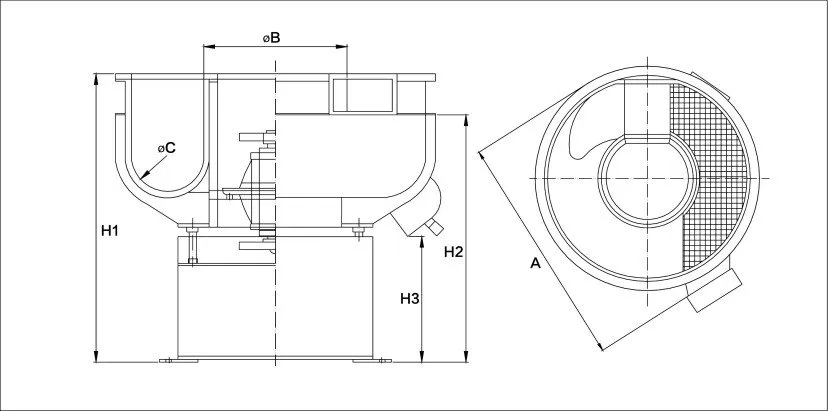

| Model | VBS(B)100 | VBS(B)150 | VBS(B)200 | VBS(B)300 | VBS(B)400 | VBS(B)600 |
|---|---|---|---|---|---|---|
| Total Volume (L) | 100 | 150 | 200 | 270 | 400 | 600 |
| Maximum Overall Diameter (mm) A | 1080 | 1170 | 1200 | 1370 | 1470 | 1860 |
| Motor Mounting Tube (mm) B | φ460 | φ460 | φ530 | φ630 | φ630 | φ900 |
| Bowl Channel Width C (mm) | φ220 | φ260 | φ252 | φ275 | φ330 | φ390 |
| Discharge Width (mm) | 250 | 210 | 250 | 320 | 380 | 470 |
| Machine Height (mm) H1 | 980 | 860 | 940 | 960 | 1270 | 1140 |
| Discharge Height (mm) H2 | 800 | 710 | 770 | 760 | 1090 | 925 |
| Media Discharge Height (mm) H3 | 470 | 440 | 360 | 290 | 570 | 400 |
| Motor (kW) | 1.5/2.2 | 2.2 | 3.0 | 3.7/5.0 | 5.0/6.0 | 5.5/7.5 |
| Weight (kg) | 280 | 320 | 460 | 650 | 780 | 1180 |
Note: All specifications are subject to change without notice. For custom requirements and detailed technical drawings, please contact our engineering team.
Our efficient vibratory deburring machines feature a durable design and provide customizable vibratory finishing solutions to meet a wide range of industrial needs.
| Material / Part Type | Objective | Media | Compound | Time | Notes |
|---|---|---|---|---|---|
| Iron / 304 Stainless Steel | Deburring + Edge Smoothing | Ceramic Media ACT 20×20 (GC) | LC-13 | 1–2 Hours | Use a wet processing method; rinse after processing; adjust the time according to burr size and part fragility. |
| Aluminum Die Castings | Light Deburring + Surface Smoothing | 600 lb Plastic Media Cone | LC-13 | 30–60 Minutes | Softer parts—avoid over-cutting; if part-to-part scratching occurs, reduce the amplitude or speed. |
| Magnesium Alloy Die Castings | Light Deburring + Surface Smoothing | 600 lb Plastic Media Cone | LC-13 | 30–60 Minutes | A gentle mode is recommended; ensure thorough rinsing and drying to prevent staining. |
| Titanium Alloy Components | Deburring + Edge Finishing | Ceramic Media ACT 20×20 (FC) | LC-13 | 2 Hours | Titanium alloy is harder—ceramic media works better; extend the processing time for heavier burrs. |
Ensures stable and efficient operation with reliable power delivery for continuous production cycles.
Long lifespan and noise reduction with superior wear resistance for extended operational efficiency.
Suitable for various materials with customizable vibratory finishing solutions for optimal results.
Our VBS(B) Vibratory Deburring Machine is designed for deburring and edge rounding aluminum, brass, copper, stainless steel, and iron workpieces, including machined parts, injection-molded parts, stamped parts, and die-cast parts.
In the vibratory deburring process, the working bowl loaded with workpieces, finishing media, and compound for wet processing is subjected to controlled rotary vibration. This motion creates continuous friction between the media and the workpieces, removing burrs, eliminating sharp edges, and improving surface smoothness with consistent results.

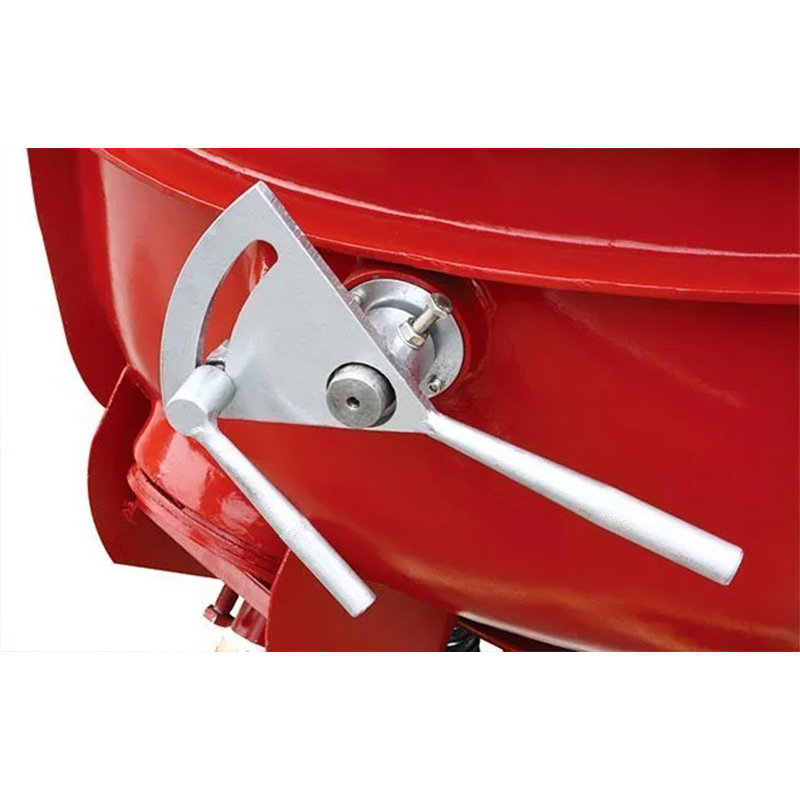

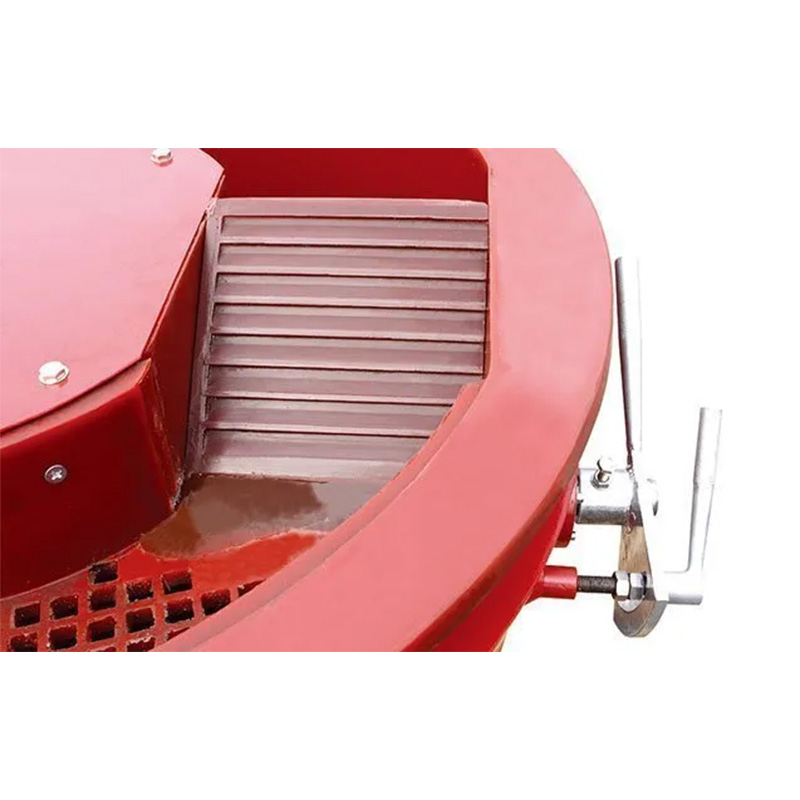

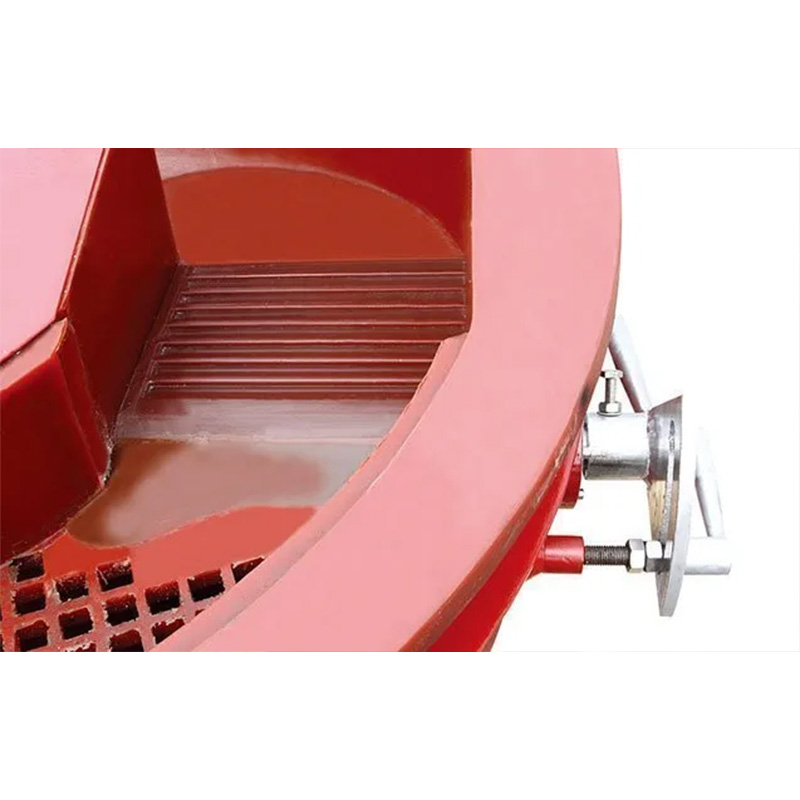

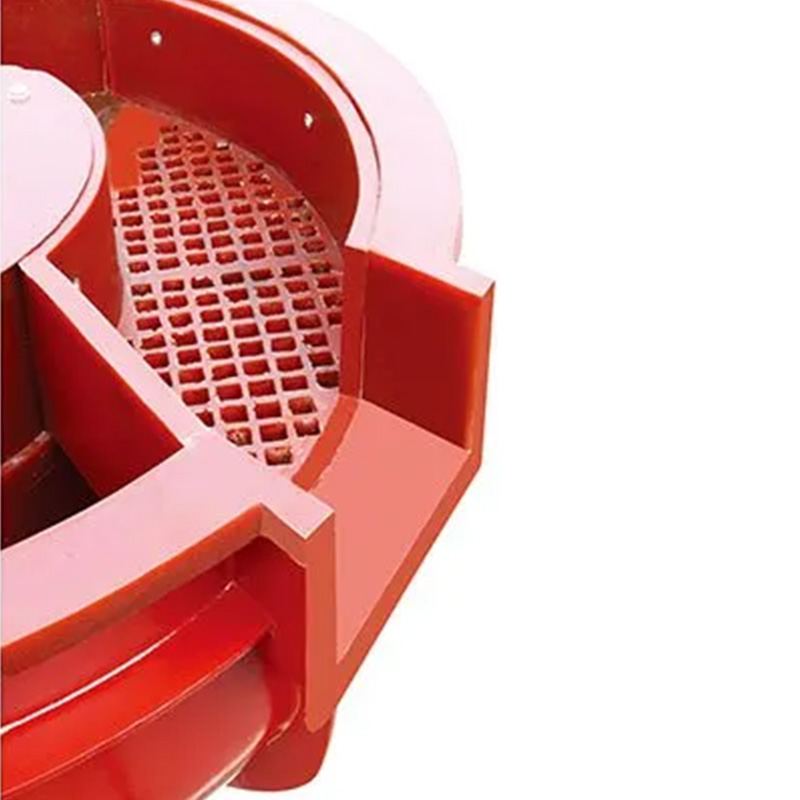

Vibratory deburring is one of the most cost-effective mass finishing methods because it can process large batches of parts with minimal operator involvement. XIACHEN provides both batch and continuous vibratory deburring solutions. The discharge flap and separation screen quickly separate parts from media. The VBS(B) series is equipped with an extended separation deck and offers multiple screen hole options to accommodate different part sizes and media types.
Our mass finishing machine and tumbling media serve diverse industries with specialized finishing solutions for various materials and part types.
Engine components, transmission parts, brake systems
Turbine blades, landing gear, structural components
Fasteners, connectors, precision tools
Post-processing, surface refinement, finishing
