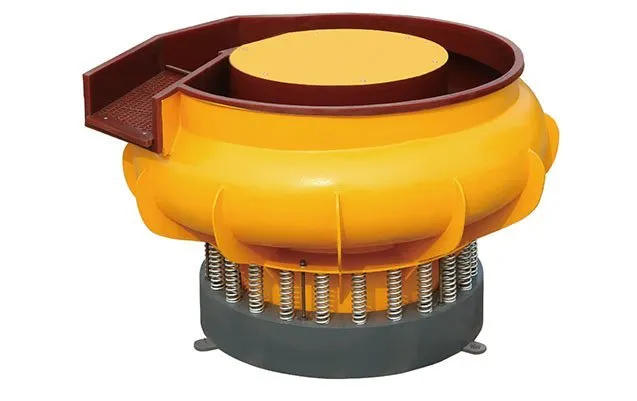

The VBS(A) series vibratory deburring machine comes with a curved wall tumbler design. It is ideal for finishing and polishing of parts with complex shapes. It does an excellent job of deburring parts without damaging the parts.
Explore the detailed specifications of our VBS(A) Series Industrial Vibratory Tumblers.

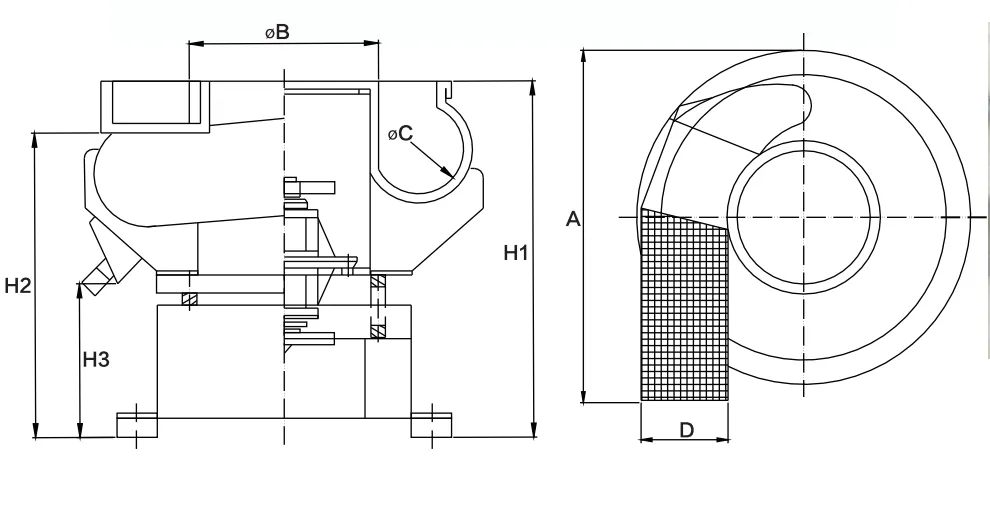

VBS(A) industrial vibratory tumbler drawing
| Model | VBS(A)100 | VBS(A)200 | VBS(A)300 | VBS(A)600 | VBS(A)900 |
| Total volume(L) | 100 | 200 | 260 | 580 | 820 |
| Max overall dimension(mm) A | 980 | 1060 | 1286 | 1800 | 2100 |
| Motor installation tube(mm) B | φ470 | φ530 | φ630 | φ900 | φ1060 |
| Process bowl width(mm) C | φ220 | φ252 | φ264 | φ390 | φ445 |
| Unload width(mm) | 250 | 266 | 287 | 430 | 450 |
| Machine height(mm) H1 | 880 | 940 | 920 | 1200 | 1500 |
| Unload height(mm) H2 | 760 | 780 | 760 | 960 | 1220 |
| Media unload height(mm) H3 | 290 | 360 | 260 | 410 | 550 |
| Motor(kw) | 1.5/2.2 | 3.0 | 3.7/5.0 | 5.5/7.5 | 11.0 |
| Weight(kg) | 280 | 460 | 600 | 1500 | 2470 |
Note: All specifications are subject to change without notice. For custom requirements and detailed technical drawings, please contact our engineering team.
Looking to buy an industrial vibratory tumbler? Our machines range from 100L to 820L. As a leading supplier of mass finishing equipment and consumables, we’ll help you choose the right setup. Get a free quote today.

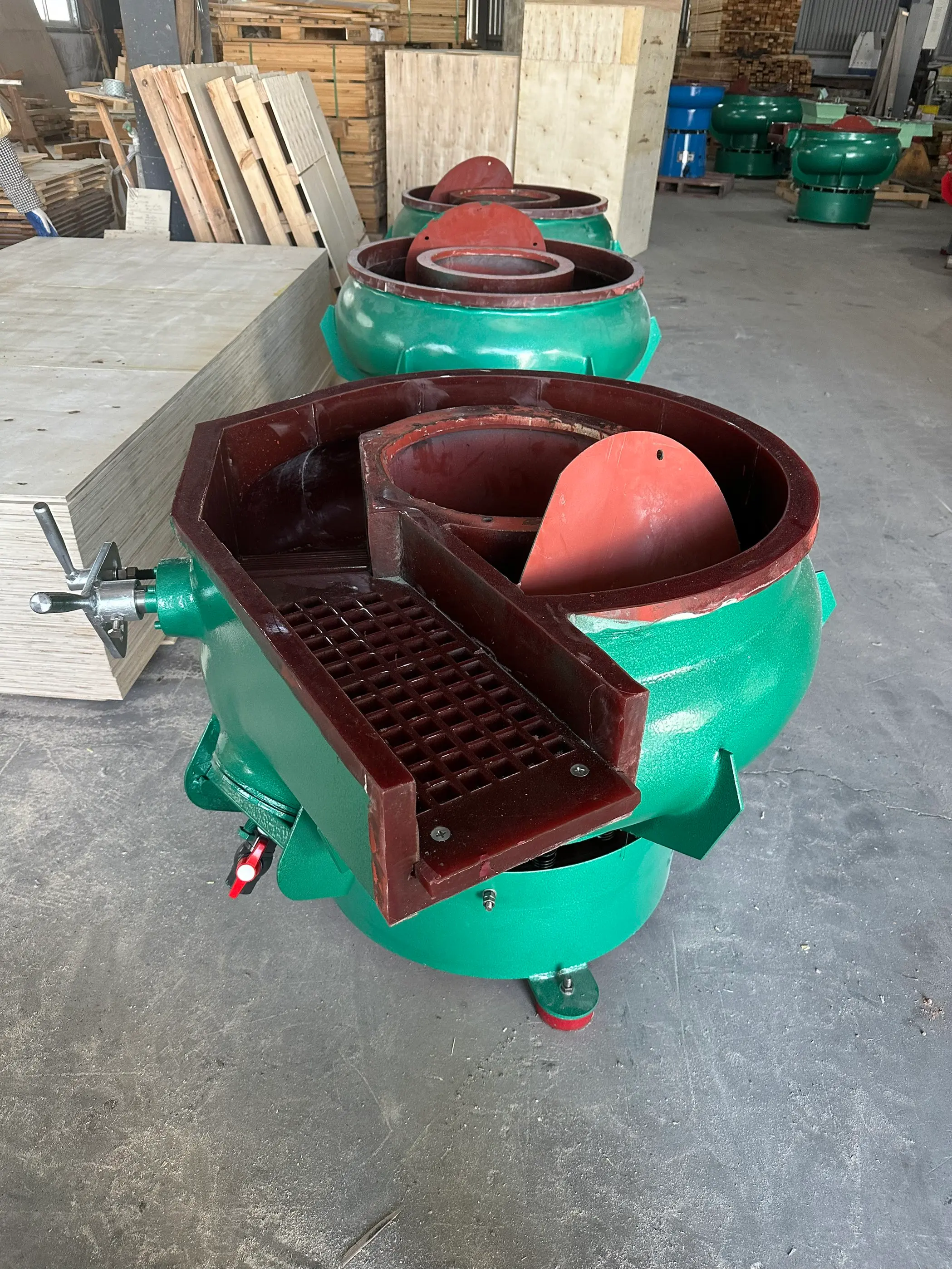

Our industrial vibratory tumbler delivers higher-efficiency finishing thanks to its curved bowl design. The curvature increases contact pressure between parts and media, helping achieve faster, more consistent results. It also reduces part-to-part sticking and prevents workpieces from adhering to the PU lining. A spiral bottom with a gradual incline maintains a stable, even mass depth throughout the finishing cycle.
Ensures stable and efficient operation with reliable power delivery for continuous production cycles.
Long lifespan and noise reduction with superior wear resistance for extended operational efficiency.
Suitable for various materials with customizable vibratory finishing solutions for optimal results.

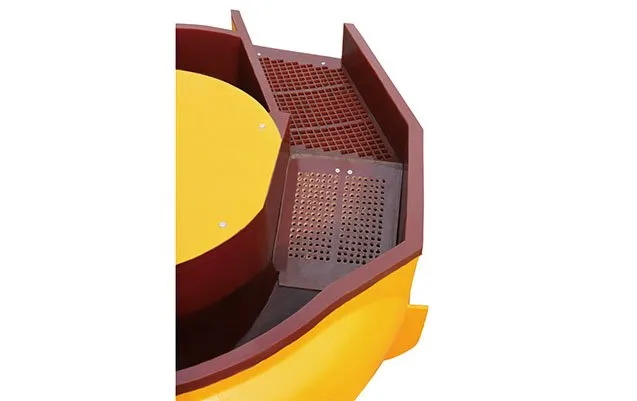

We have integrated extended separation sieve into the tumbler bowl, allowing the tumbling media and workpieces to separate inside the machine. You can also adjust the separation sieve holes size as per the tumbling media size and shape.

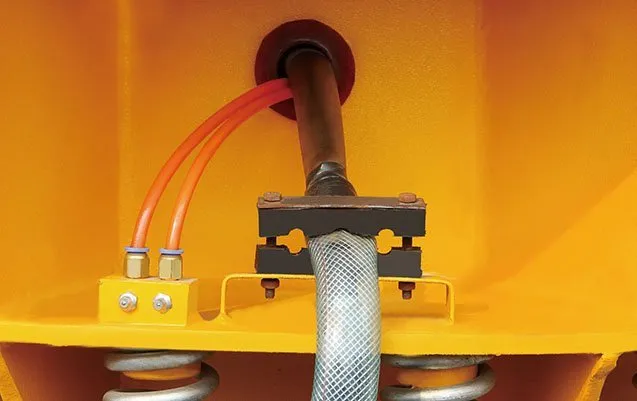

Hot-poured PU and a heavy-duty vibration motor are the primary components in our high-end industrial vibratory tumblers. We make our polyurethane using raw materials sourced from Dow Chemicals, USA.
We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours. We use heavy-duty motor from Shanghai Vibration Co. With proper maintenance, it can last more than five years.
Our mass finishing machine and tumbling media serve diverse industries with specialized finishing solutions for various materials and part types.
Engine components, transmission parts, brake systems
Turbine blades, landing gear, structural components
Fasteners, connectors, precision tools
Post-processing, surface refinement, finishing
