Key Advantages in Performance & Quality

• Consistent Results: The centrifugal disk finishing machine delivers uniform surface finish quality from batch to batch, ensuring stable and reliable results in mass production.
• Low Damage Rate: With controlled high-energy rotation and proper media selection, the centrifugal disk finishing machine reduces part-to-part impact and helps protect small or delicate components.
• High Repeatability: Digital controls and simple program settings help the centrifugal disk finishing machine maintain cycle-to-cycle consistency, typically within ±1% under the same process conditions.
• Real Industrial Testing: The centrifugal disk finishing machine is validated by 1,000+ finishing tests across different metals, geometries, and part sizes.
• Process Tracking: Each centrifugal disk finishing machine can record key data such as cycle time, media type, and process parameters for easier quality control and repeatable production.

Technical Specifications

Detailed specifications for our CD series Centrifugal disk finishing machine.

Note: All specifications are subject to change without notice. For custom requirements and detailed technical drawings, please contact our engineering team.

Key Features & Benefits

Our high-efficiency Centrifugal Disk Finishing Machines  feature durable design and customizable high speed precision finishing solutions to meet diverse industrial requirements.

Heavy-duty Motor

Ensures stable and efficient operation with reliable power delivery for continuous production cycles.

• High-efficiency motor design
• Consistent performance
• Reduced energy consumption

PU Lining Bowl

Long lifespan and noise reduction with superior wear resistance for extended operational efficiency.

• Durable design materials
• Noise reduction technology
• Extended service life

Adjustable Speed

Suitable for various materials with customizable centrifugal finishing solutions for optimal results.

• Variable speed control
• Material-specific settings
• Precision finishing control

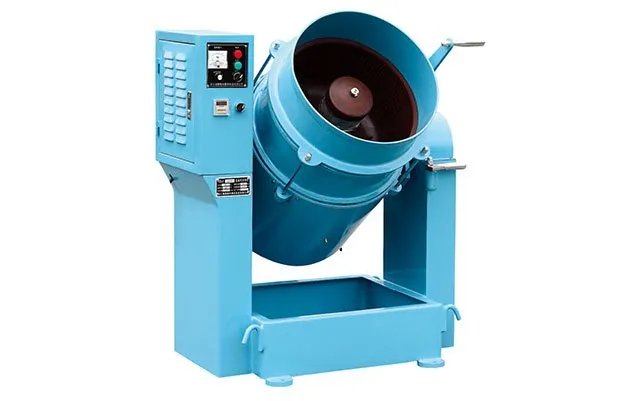

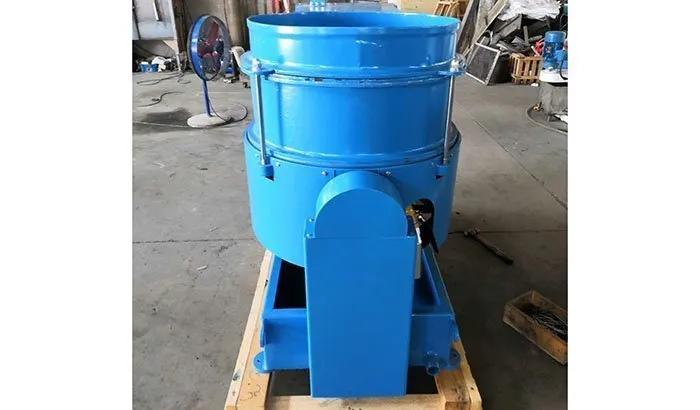

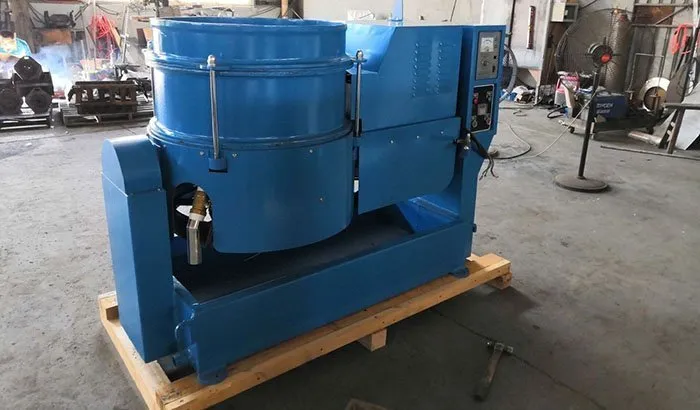

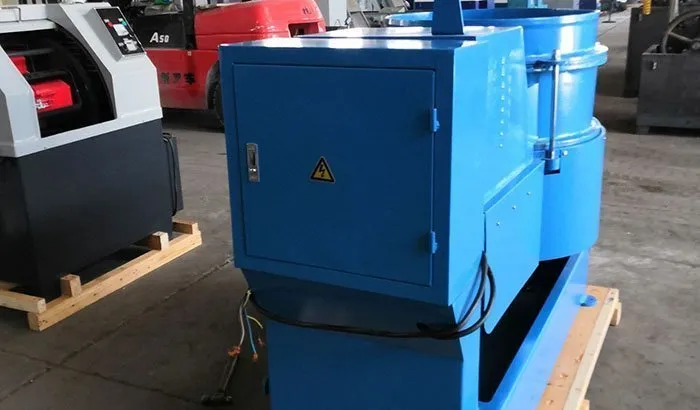

Product Overview

CD centrifugal disc finishing machines offer a cost-effective solution for small-batch processing of smaller parts. Their high-energy disc finishing technology can deliver up to 10× faster cycle times than standard vibratory bowl finishers. With short processing times and a high level of automation, they provide an efficient, consistent finishing process with excellent productivity.

At INOVATEC, 50L, 80L, and 120L are the most popular size centrifugal disc finisher. Depending on spinner speed (50-180 RPM) and the water level, centrifugal disc finishing equipment can accomplish work from aggressive deburring to luster polishing.

Process Recipe Example: Washer Parts Deburring (CD120)

Machine: CD120 centrifugal disc finishing machine

Application: Deburring washer parts
Mode: Wet finishing
Processing time: 1 hour

Notes

• This recipe is designed for fast burr removal + edge breaking in a single wet cycle.
• Results depend on washer thickness, burr size, and required edge radius; we recommend a small trial run to fine-tune time and compound concentration.

Feature:

• Compact design and easy to handle
• Process timer setting
• Continuous speed adjustment
• Optional processing barrel unloading and discharge
• Optional forward and backward movement
• Variable speed converter
• Optional noise cover
• Optional dosing pump

Applications:

• stampings, castings or machined parts finishing
• Parts with size around 150mm or smaller
• Parts with thickness 1mm and above
• Coin blank polishing
• Zamak belt buckle polishing
• Plastic eyeglass frame polishing

Key Applications

Our mass finishing machine and tumbling media serve diverse industries with specialized finishing solutions for various materials and part types.

Automotive

Engine components, transmission parts, brake systems

Aerospace

Turbine blades, landing gear, structural components

Hardware

Fasteners, connectors, precision tools

3D Printing

Post-processing, surface refinement, finishing
